Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine
  • Apple Pulp Jam Processing Line Puree & Paste Making Machine

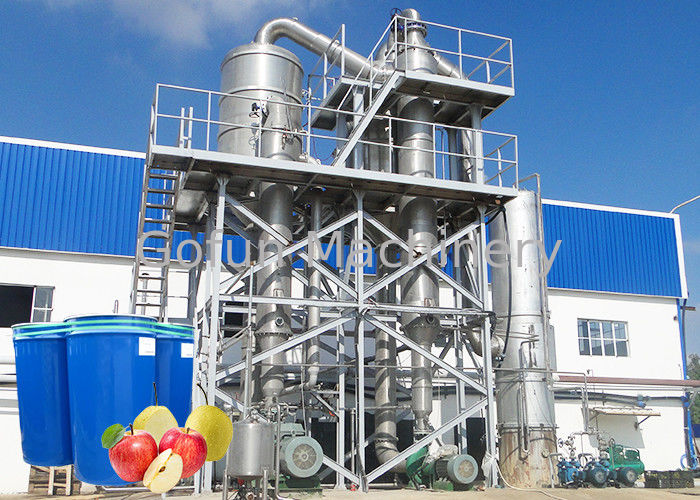

Apple Pulp Jam Processing Line Puree & Paste Making Machine

起源の場所 中国、上海
ブランド名 Gofun
証明 CE, ISO
モデル番号 GFM-APL、GFM-PPL
製品詳細
保証:
1年
アフターサービスの提供:
海外で機械のサービスを提供できるエンジニア
電圧:
220/380/440V、顧客によると
証明:
CE/ISO9001
タイプ:
ターンキー処理ライン
材料:
Food Standard SUS 304、316、顧客への添加
容量:
顧客によると、20t/日〜1500t/日
応用:
リンゴ、梨
製品名:
リンゴ/ナシジュース処理ライン
最終製品:
NFCジュース、曇りジュース、クリアジュース、濃縮ジュース、飲料
特別なプロセス:
HPP(高圧処理)、UHP(超高圧処理)
支払いと送料の条件
最小注文数量
1セット
価格
negotiable
パッケージの詳細
国際標準パッケージでの配送
受渡し時間
45~90日
支払条件
T/T、ウェスタンユニオン、L/C
供給の能力
年間20セット
製品説明

Versatile Apple Processing Equipment – From Clear Juice to Fruit Pulp

Maximize the value of your raw materials with our versatile apple processing line. This equipment is not limited to a single output; it is engineered to produce a wide spectrum of apple-based products. You can seamlessly switch production between clear apple juice concentrate (adjustable from 65 to 72 Brix), natural cloudy juice, NFC fresh juice, and apple jam or puree . The flexible process flow allows you to adapt quickly to changing market demands for juice, concentrates, and specialty pulps.

The system includes dedicated modules for pulping and refining, making it ideal for creating smooth apple jam and paste used in bakeries and confectioneries. For liquid products, our ultra-filtration and disc centrifuge systems guarantee brilliant clarity and stability . This complete line serves as the backbone for a modern fruit processing factory, empowering you to diversify your product portfolio and reduce waste. With after-sales support including installation guidance and overseas engineer training, we offer a genuine turnkey project for the global beverage industry.



Technical Specifications
Product NameOne-stop solution for apple processing line
Fresh Fruit Inlet Capacity500kg per hour ~ 25 tons per hour, customized
Raw MaterialFresh apple
End ProductsApple pulp, apple puree, apple juice, apple jam, dry apple and more
Final Product Brix10%~12%
Final PackagingAseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine MaterialFood grade SUS304 or SUS316
Warranty12 months after commissioning
Operators RequiredAbout 10~12 persons
Voltage380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Key AdvantagesEnergy-saving, High efficiency, Water-saving, Stable performance
Production Process Overview
1Discharge Platform
Fresh apples are unloaded from trucks using a dedicated platform with water guns and transported to the production line via water flow. This area also serves as a pre-washing station before processing begins.
2Elevator
Transports fresh apples from external receiving areas into the processing facility.
3Washing
Fresh apples undergo thorough cleaning before skin and seed removal. Additional cleaning stages, including ultrasonic and ozone cleaning, can be integrated for enhanced sanitation.
Industrial apple washing machine with multiple cleaning stages
4Sorting
After washing, apples are visually inspected by operators to identify and remove any defective fruit, ensuring only quality produce proceeds to processing.
Quality control sorting station for apple inspection Close-up view of apple sorting conveyor system
5Crushing
GFM-FC series crushers utilize advanced technology for high-precision crushing of apples and other fruits. This fine grinding process enhances the efficiency of subsequent processing stages.
Industrial fruit crusher machine for apple processing
6Preheating
Crushed material is heated to temperatures between 45°C and 85°C. This step improves juice yield in subsequent extraction while preserving color and flavor characteristics.
Temperature-controlled preheating system for apple mash
7Belt Type Juice Extractor
Advanced belt press technology delivers high-efficiency juice extraction with over 70% yield. Features energy-saving design and automated control for optimal performance.
High-capacity belt press juice extractor for apples
8Sterilizing
Tube sterilizers process apple puree and applesauce at ultra-high temperatures (approximately 115°C for 30 seconds) followed by immediate cooling. This preserves taste and nutritional content while ensuring product safety.
Industrial tube sterilization system for apple products Control panel and monitoring system for sterilization process
9Aseptic Filling
Closed-loop aseptic filling systems work in conjunction with sterilizers. The filling chamber maintains vapor protection and sterile conditions, with mirror welding technology ensuring clean, smooth surfaces. Includes CIP and Auto SIP capabilities for various packaging formats.
Aseptic filling machine for sterile packaging of apple products Automated aseptic filling line operation
10Storage or Blending
Finished products can be stored directly or used as raw materials for further processing into apple sauce, ketchup, or other value-added products.
Storage tanks and blending systems for processed apple products
