Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
  • Turnkey Mango Processing Factory – Four Product Lines in One Design
Turnkey Mango Processing Factory – Four Product Lines in One Design

Turnkey Mango Processing Factory – Four Product Lines in One Design

起源の場所 上海
ブランド名 Gofun
証明 CE, ISO certificate
モデル番号 gfm-mpl
製品詳細
保証:
12ヶ月
証明:
CE/ ISO9001
電圧:
顧客によると、220/380/440V
電力(w):
7.5kw
タイプ:
AからZまでのターンキー処理ライン
材料:
SUS304/ SUS316
容量:
1 t/h-20 t/h
製品名:
マンゴー乾燥加工機
アフターサービス:
海外の技術サポート
応用:
マンゴー
状態:
新しい
重さ:
カスタマイズされた
ハイライト:

turnkey mango processing factory

,

mango processing line design

,

four product line mango factory

支払いと送料の条件
最小注文数量
1セット
価格
negotiable
パッケージの詳細
輸送用の国際標準パッケージ
受渡し時間
45〜90日
支払条件
T/T、ウェスタンユニオン、L/C
供給の能力
年間100セット
製品説明

Turnkey Mango Processing Factory – Four Product Lines in One Design

Start or expand your mango business with this flexible equipment system. Process fresh mangoes into four high-value products: puree for bulk ingredient sales, dried fruit for snacks, juice for retail bottles, and fruit drinks for mass market.

Why this mango processing line stands out:

Energy efficient – Heat pump dryer uses 40% less electricity than conventional electric dryers.

Low waste – Destoner removes pits with minimal flesh loss (<2%). Refiner separates fibers for puree and reuses pulp for drinks.

Easy product changeover – Same washing, sorting, and pitting modules feed into different finishing lines. Switch from puree to juice in under 30 minutes.

Natural preservation – No artificial preservatives needed. UHT sterilization and aseptic filling give 12-month shelf life.

For mango dried fruit buyers: Your chips will have uniform golden color, chewy or crispy texture adjustable via drying time and temperature. No sulfur dioxide required.

For beverage producers: The mango drink line handles juice (clear or cloudy), nectar, lassi-style yogurt drinks, and mango iced tea. PLC stores up to 20 recipes.

We provide free layout design, local installation guidance, and online troubleshooting. Small-scale (500 kg/hour) and industrial (10 tons/hour) configurations available. Ready for export with CE certification.

Technical Specifications
Product Name One-stop solution for mango processing line
Fresh Fruit Inlet Capacity 500kg per hour ~ 25 tons per hour, customized
Raw Material Fresh mango
End Products Mango pulp puree, Mango concentrate, Mango sauce, Mango juice, Mango beverage
Final Product Brix 14%~20%
Final Package Options Aseptic bag, Aluminum can, Stand-up pouch, PP container, Plastic bottle, Glass jar, Gable top carton box, Tetra pack, etc
Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Operator Requirement About 10~12 persons
Voltage 380V 50Hz/ 110V 60Hz/ 415V 50Hz (adjustable to client's country standard)
Advantages Energy-saving, High efficiency, Water-saving, Stable performance

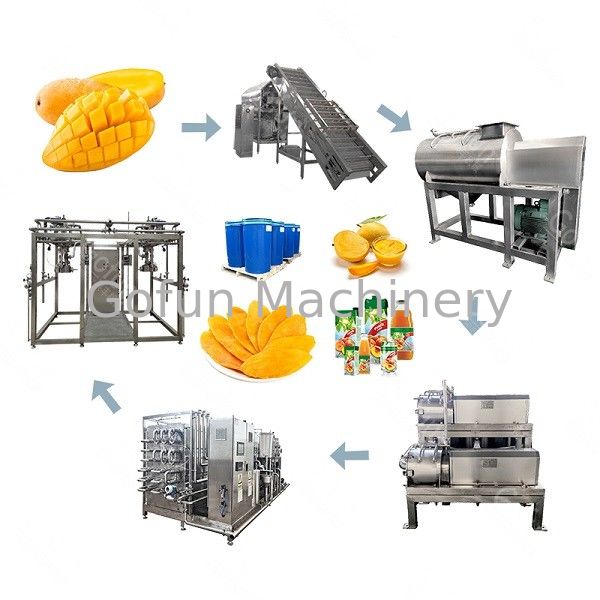

Processing Flowchart
FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTINING ⇒ PREHEATING ⇒ PULPING & REFINING ⇒ CENTRIFUGE ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Turnkey Mango Processing Factory – Four Product Lines in One Design 0
Final Products & Packaging Options
Our processing line utilizes fresh mango and mango paste as raw materials to produce various final products including mango paste, mango sauce, mango juice, mango powder, diced mango, and dried mango.
Turnkey Mango Processing Factory – Four Product Lines in One Design 1
Available packaging formats include aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, and gable top cartons.
Turnkey Mango Processing Factory – Four Product Lines in One Design 2
Key Features
  • Full-process Integration: Comprehensive mango processing from pretreatment to bottling of finished products within a single integrated system
  • Safety Assurance: Built with 304/316 stainless steel and FDA/CE certification for ensuring food safety standards
  • Smart and Productive: Precise parameter control via PLC with adjustable capacity ranging from 500kg/h to 10t/h
  • Energy-efficient and Eco-friendly: Low-power configuration to minimize operational expenses
  • Versatile Functionality: Capable of processing mango pulp, various juices, and vegetable purees
  • Complete Support: Tailored design, installation, commissioning, technical training, and post-sales assistance services
Detailed Process Steps
1. Discharge Platform
Specialized drainage platform with water guns simplifies raw mango unloading from trucks while providing pre-washing capabilities to enhance production line efficiency.
2. Elevator
This machine transports fresh mango from outside the building to inside the processing facility.
Turnkey Mango Processing Factory – Four Product Lines in One Design 3
3. Washing
Thorough washing of fresh fruits prior to crushing using bubble washers and brush & spray washers. Optional ultrasonic and ozone cleaning methods available for enhanced cleaning efficacy.
Turnkey Mango Processing Factory – Four Product Lines in One Design 4
4. Sorting
Visual inspection by staff after washing to identify defects, ensuring only high-quality fruits proceed through the production line.
Turnkey Mango Processing Factory – Four Product Lines in One Design 5
5. Destoning
Mango remover operates at 1470 r/min, effectively crushing fresh mango to ensure thorough cleaning of core and skin, maximizing pulp yield and production efficiency.
Turnkey Mango Processing Factory – Four Product Lines in One Design 6
6. Preheating
Adjustable temperature pre-heater (45℃ to 85℃) increases juice yield for subsequent processing while protecting final product color and taste.
Turnkey Mango Processing Factory – Four Product Lines in One Design 7
7. Pulper and Refiner
Operating at 1470 r/min, this machine generates centrifugal force to pass product through screens for refinement. Suitable for various fruits including passion fruit, tomatoes, peaches, apricots, mangoes, and apples.
Turnkey Mango Processing Factory – Four Product Lines in One Design 8
8. Horizontal Spiral Centrifugal
Reduces solids and impurities to ensure mango pulp puree is free from contaminants and black spots.
Turnkey Mango Processing Factory – Four Product Lines in One Design 9
9. Sterilizing
Tube-in-tube type sterilizer with adjustable temperature and retention time for different product requirements. Programmable control system ensures precise automation.
Turnkey Mango Processing Factory – Four Product Lines in One Design 10
10. Aseptic Filling
Operates with tube-in-tube sterilizer in closed cycle system. Vapor-protected filling cavity maintains sterility throughout the packaging process.
Turnkey Mango Processing Factory – Four Product Lines in One Design 11
11. Storage or Blending
Final product can be stored as-is or used as raw material for producing mango sauce or other products.
Turnkey Mango Processing Factory – Four Product Lines in One Design 12
Turnkey Mango Processing Factory – Four Product Lines in One Design 13
Turnkey Mango Processing Factory – Four Product Lines in One Design 14
